Electrophysiological and pharmacological properties of GABAergic cells in the dorsal raphe nucleus


The dorsal raphe nucleus (DRN) is the origin of the central serotonin [5-hydroxytryptamine (5-HT)] system and plays an important role in the regulation of many physiological functions such as sleep/arousal, food intake and mood. In order to understand the regulatory mechanisms of 5-HT system, characterization of the types of neurons is necessary. We performed electrophysiological recordings in acute slices of glutamate decarboxylase 67–green fluorescent protein knock-in mice. We utilized this mouse to identify visually GABAergic cells. Especially, we examined postsynaptic responses mediated by 5-HT receptors between GABAergic and serotonergic cells in the DRN. Various current responses were elicited by 5-HT and 5-HT1A or 5-HT2A/2C receptor agonists in GABAergic cells. These results suggested that multiple 5-HT receptor subtypes overlap on GABAergic cells, and their combination might control 5-HT cells. Understanding the postsynaptic 5-HT feedback mechanisms may help to elucidate the 5-HT neurotransmitter system and develop novel therapeutic approaches.


The dorsal raphe nucleus (DRN), which is the origin of the central serotonin (5-hydroxytryptamine; 5-HT) system, plays an important role in regulating many physiological functions, such as sleep/arousal, food intake, and mood. The DRN provides serotonergic innervation to several brain regions, including the cerebral cortex, basal forebrain, mesencephalon, hypothalamus, and thalamus, and it receives reciprocal inputs from these broad brain regions. The DRN is composed of heterogeneous neuronal groups that differ in cellular morphology, electrophysiological properties, and the expression of neurotransmitters, such as 5-HT, gamma-aminobutyric acid (GABA), and glutamate [1]. This heterogeneous organization may correspond to a variety of physiological functions that are involved in serotonergic neurotransmission and complicate the understanding of DRN functions. In addition to 5-HT cells, GABAergic cells consist of another major DRN cell group [13]. GABAergic cells function as interneurons in local circuits with serotonergic projection neurons and regulate their output [4]. Therefore, characterization of the properties of each cell type, especially of GABAergic cells, and their interactions may help to elucidate the various functions of the DRN.

To date, many investigations have described the properties of DRN 5-HT cells through in vivo or in vitro electrophysiological recordings with neurochemical identification [58]. However, these studies did not directly characterize the properties of DRN GABAergic cells but described GABAergic cells as putative non-5-HT cells that do not exhibit tryptophan hydroxylase (TPH) immunoreactivity. Since identifying GABAergic cells under electrophysiological recordings is difficult, the properties of DRN GABAergic cells have been poorly characterized.

In order to characterize GABAergic cells, we used a knock-in mouse line in which the expression of green fluorescent protein (GFP) was controlled by the glutamate decarboxylase (GAD) 67 endogenous promoter in order to specifically visualize GABAergic cells [9]. This transgenic mouse line (GAD67+/GFP) allows for the identification and characterization of GABAergic cells in the brain [1012]. The electrophysiological and pharmacological properties of directly identified GABAergic cells in the DRN have not yet been characterized. Thus, this study aimed to characterize the differences in electrophysiological and pharmacological properties in GABAergic and non-GABAergic cells in the DRN of GAD67+/GFP mice with whole-cell patch-clamp recording techniques and immunohistochemistry. The properties of GABAergic cells differed from those of non-GABAergic cells in the DRN. Furthermore, the DRN GABAergic cells were heterogeneous in their postsynaptic responses to 5-HT and selective agonists of 5-HT1A and 5-HT2A/2C receptors.

Materials and methods


The generation of GAD67–GFP knock-in mice have been described previously [9], and these mice, used in the present study, were termed GAD67+/GFP. The mice were maintained with a genetic background of C57BL/6 at our animal facility. In accordance with a protocol approved by the Ethics Review Committee of Nippon Medical School, we made efforts to minimize the number of animals used and their suffering.


Male heterozygous GAD67+/GFP mice aged 24 days (n = 2) were deeply anaesthetized with pentobarbital and transcardially perfused with freshly prepared 4 % paraformaldehyde in phosphate-buffered saline (PBS). The midbrain was removed, post-fixed at 4 °C overnight, and cryoprotected in 20 % sucrose in PBS at 4 °C overnight. The midbrain was cut into serial transverse cryosections with a cryostat (Leica, Tokyo, Japan). Immunohistochemistry was performed on free-floating sections, as previously described [13]. Briefly, transverse cryosections (20 μm) of the midbrain were incubated with a rabbit anti-GFP polyclonal antibody (1:2,000; EMD Millipore, MA, USA) and a sheep anti-TPH polyclonal antibody (1:2,000; Life Technologies, NY, USA) for 3 days at 4 °C. The sections were then incubated with secondary antibodies labeled with Alexa Fluor 594 (1:2,000; Life Technologies) for GFP and Alexa Fluor 488 (1:2,000; Life Technologies) for TPH. After electrophysiological recording, slices were immersion-fixed overnight in 4 % paraformaldehyde prepared in 0.1 M PBS and then stored in PBS. Fixed sections were incubated with a sheep anti-TPH polyclonal antibody (1:1,000; Life Technologies) for 3 days at 4 °C. Subsequently, these sections were incubated with an Alexa Fluor 488 (1:1,000)-conjugated donkey anti-sheep secondary antibody and streptavidin-conjugated Alexa Fluor 594 (1:1,000) to visualize the immunohistochemical labeling and biocytin. Images were captured with a high-resolution digital camera (Olympus, Tokyo, Japan).

Electrophysiological recording

Slices for experiments were prepared from 21- to 27-day-old male GAD67+/GFP mice. The mice were deeply anesthetized by halothane inhalation. Following decapitation, the brains were rapidly removed and placed in ice-cold Na+-deficient saline (~4 °C) that contained 252 mM sucrose, 21 mM NaHCO3, 3.35 mM KCl, 0.5 mM CaCl2, 6.0 mM MgCl2, 0.6 mM NaH2PO4, and 10 mM glucose. Coronal slices (250 μM) were cut with a vibratome (Leica) through the entire rostrocaudal extent of the DRN between −4.84 and −4.48 Bregma (according to the atlas of Paxinos and Franklin [26]) and placed in a submerged chamber for at least 1 h in artificial cerebrospinal fluid (ACSF) that contained 138.6 mM NaCl, 3.35 mM KCl, 2 mM CaCl2, 1.3 mM MgCl2, 21.0 mM NaHCO3, 0.6 mM NaH2PO4·2H2O, and 10.0 mM glucose. ACSF was maintained at pH 7.4 by bubbling 95 % O2/5 % CO2 gas.

Individual slices were transferred to a recording chamber attached to a microscope stage, continuously perfused with oxygenated ACSF at a flow rate of 1.5 mL/min, and maintained at room temperature (~27 °C). Borosilicate glass-patch electrodes (World Precision Instruments, FL, USA) with a resistance of 6–12 MΩ when filled with an internal solution of 150 mM potassium methanesulfonate, 1.0 mM KCl, 0.2 mM K-EGTA, 20 mM HEPES, 3.0 mM MgATP2, and 0.4 mM Na-GTP (pH 7.38) were used for whole-cell recordings of DRN cells. Cells that were visualized under a blue light were considered GFP-positive (GFP(+)), and these were designated GABAergic cells. Cells without GFP were considered GFP-negative (GFP(−)), and these were designated non-GABAergic cells. Whole-cell patch-clamp recordings were acquired and controlled with Axon 700B Multiclamp amplifier and pClamp acquisition software (Molecular Devices, CA, USA). In the pharmacological experiments, the amplitudes of membrane current induced by serotonergic agonists were measured from the baseline before application of agonist to peak current amplitude of their responses.


The following chemicals were used in this study: 5-HT, (R)-(+)-8-hydroxy-2-(di-n-propylamino)tetralin hydrobromide (8-OH-DPAT), and (+/−)-2,5-dimethoxy-4-iodoamphetamine hydrochloride (DOI) (Sigma-Aldrich, MO, USA).

Analysis and statistics

The data are presented as the mean ± standard error of the mean, and n represents the number of independent experiments. Statistical differences were evaluated with the Tukey–Kramer test. P values <0.05 were considered statistically significant.


Distribution of GFP-positive cells and GFP-negative cells in the DRN of GAD67+/GFP mice

The DRN of GAD67+/GFP mice contained a large population of brightly fluorescent GFP(+) cell structures, including the soma, dendrites, and axons (Fig. 1a1, b1). In GAD67+/GFP mice, numerous GFP(+) cells were localized to the lateral DRN, whereas TPH-immunopositive cells were densely present within the midline DRN where GFP(+) cells were hardly observed. Numerous small (5–10 μm) GFP(−) cells that were TPH-immunonegative were intermingled with GFP(+) cells in the lateral DRN (Fig. 1a, b). This complementary distribution of GFP(+) cells and TPH-immunopositive cells was consistent with a previous study [3]. We obtained whole-cell patch-clamp recordings of the membrane properties of 74 GFP(+) cells and 73 GFP(−) cells in the DRN of GAD67+/GFP mice. All tested GFP(+) cells were located in the lateral DRN. GFP(−) cells that were located in the midline DRN (mGFP(−)) accounted for two-thirds of the tested GFP(−) cells (37/55), and the remaining tested GFP(−) cells (18/55) were located in the lateral DRN (lGFP(−)) (Fig. 1c). After the recordings, 71 GFP(+), 45 mGFP(−), and 15 lGFP(−) biocytin-filled DRN cells were reconstituted and immunolabeled with TPH in order to determine whether the cell was a 5-HT cell (Fig. 2a). The majority of stained GFP(+) cells (77 %, 55/71) were TPH-immunonegative, whereas most stained mGFP(−) cells (91 %, 41/45) were TPH-immunopositive (5-HT cells). All stained lGFP(−) cells were TPH-immunonegative (putative glutamatergic cells, n = 15). However, 23 % of the GFP(+) cells (16/71) had weak TPH-immunoreactivity. These results were consistent with recent study that demonstrated the presence of GAD67-containing 5-HT neurons in the rat DRN [14], but this cell group is remained to be clarified. mGFP(−) cells had significantly larger cell bodies than those of GFP(+) cells and lGFP(−) cells. (soma cross-sectional area: mGFP(−), 162.0 ± 7.9 μm2; GFP(+), 87.9 ± 3.9 μm2; lGFP(−), 63.4 ± 5.0 μm2; mGFP(−) vs. GFP(+), p < 0.001; mGFP(−) vs. lGFP(−), p < 0.001; GFP(+) vs. lGFP(−), p > 0.05).

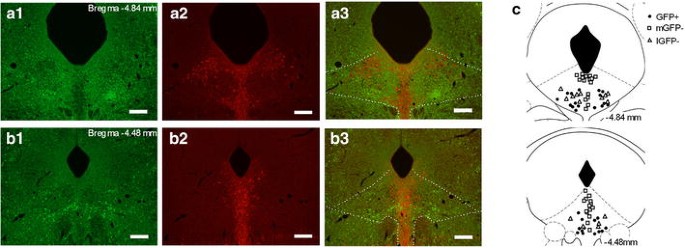

Fig. 1

Distribution of GFP-positive neurons and TPH-containing neurons in the DRN. a, b Fluorescent images of GFP-positive neurons (green) and TPH-containing neurons (red) at the level of the caudal and rostral DRN. The numbers in the upper right of the images represent the distances from Bregma. GFP-positive neurons were present within lateral areas of the DRN and absent at the midline areas, whereas TPH-containing neurons were densely distributed at the midline areas. c Schematic of the sites of the neurons from which electrophysiological properties were obtained. The different symbols represent the types of tested neurons: GFP-positive neurons (GFP(+); filled circle), GFP-negative neurons located in medial DRN (mGFP(−); square), and GFP-negative neurons located in lateral DRN (lGFP(−); triangle). The numbers on the lower right of the coronal sections represent the distances from Bregma

Fig. 2

Morphological and electrophysiological differences among green fluorescent protein (GFP)-positive cells (GFP(+)), GFP-negative cells located in medial DRN (mGFP(−)), and GFP-negative cells located in lateral DRN (lGFP(−)). a Immunohistochemistry of the 3 types of DRN cells. The cell is double-labeled for both tryptophan hydroxylase (TPH; green) and biocytin (red). Scale bar 10 μm in both panels. b Representative action potential (AP) waveforms of GFP(+), mGFP(−), and lGFP(−) neurons. These APs were elicited by the minimum depolarizing holding current. c AP waveforms of GFP(+), mGFP(−), and lGFP(−) neurons in the DRN that were generated by injecting currents of 100 pA (black), 200 pA (green), and 400 pA (orange), respectively. d Input–output relationship curves of GFP(+), mGFP(−), and lGFP(−) neurons in the DRN (GFP(+), n = 39; mGFP(−), n = 35; lGFP(−), n = 18). APs were generated by injecting current steps from 0 to 400 pA in increments of 20 pA. The firing frequency of AP were calculated at the period of current injection (400 ms)

Intrinsic membrane properties of DRN GFP(+) and GFP(−) cells

We analyzed the intrinsic membrane properties of 74 GFP(+), 55 mGFP(−), and 18 lGFP(−) cells in the DRN. Representative examples of action potential (AP) shapes of GFP(+), mGFP(−), and lGFP(−) cells are shown in Fig. 2b. Almost no DRN cells were spontaneously active. There were many significant differences in the multivariate analyses between them. The resting membrane potentials of GFP(+) and lGFP(−) cells were more depolarized than those of mGFP(−) cells (Table 1). The threshold potential for AP generation (AP threshold) of GFP(+) cells was significantly hyperpolarized (Table 1). In addition, input resistance was significantly larger in GFP(+) cells than in mGFP(−) and lGFP(−) cells (Table 1). The most distinguishable of these differences were the AP waveforms and amplitudes. As shown in Fig. 2b, mGFP(−) cells had larger AP amplitudes and wider AP waveforms compared to those of GFP(+) and lGFP(−) cells, whereas the AP waveforms of GFP(+) and lGFP(−) cells were similar. AP overshoot and amplitude of mGFP(−) cells were significantly larger than those of GFP(+) and lGFP(−) cells (Table 1). Regarding AP kinetics, such as half-width, rise time, and decay time, mGFP(−) cells had significantly broader APs compared to GFP(+) and lGFP(−) cells (Table 1). Although most cells had both fast and slow AHPs (fAHP and sAHP) components, some mGFP(−) cells were deficient in the fAHP. The sAHP amplitude of mGFP(−) cells was significantly larger than those of GFP(+) and lGFP(−) cells (Table 1). The fAHP amplitude of lGFP(−) cells was larger than those of GFP(+) and mGFP(−) cells (Table 1).

Table 1 Electrophysiological properties of GFP(+), medial GFP(−), and lateral GFP(−) cells in the DRN

Next, we injected positive current steps from 0 to 400 pA with increments of 20 pA (duration of 400 ms) to determine the active membrane properties of the cells (Fig. 2c). As shown in Fig. 2d, the input–output relationship curves of GFP(+) and lGFP(−) cells were steeper than that of mGFP(−) cells. GFP(+) and lGFP(−) cells had a similar sensitivity to injected currents <120 pA, but the firing frequency of GFP(+) cells saturated around 25 Hz with input currents over 140 pA. The firing frequency of APs that were generated by injecting 200 pA for 400 ms significantly differed among these 3 cell populations (GFP(+), 27.3 ± 2.5 Hz; mGFP(−), 15.1 ± 1.2 Hz; lGFP(−), 38.6 ± 3.7 Hz; GFP(+) vs. mGFP(−), p < 0.001; mGFP(−) vs. lGFP(−), p < 0.001; GFP(+) vs. lGFP(−), p < 0.01).

Effects of 5-HT, 8-OH-DPAT, and DOI

We next explored the pharmacological effects of 5-HT on the membrane current of DRN GFP(+) and mGFP(−) cells of GAD67+/GFP mice. Prior studies have demonstrated that inhibitory effects are induced by 5-HT through the 5-HT1A receptor in DRN 5-HT cells [68]. As shown previously, bath applications of 5-HT (10 μM) elicited outward currents in all tested mGFP(−) cells that were considered mostly 5-HT cells (n = 9, Fig. 3a2). However, in most tested GFP(+) cells, 5-HT elicited an inward current (77.8 %, n = 21/27; Fig. 3a1). 5-HT-induced outward currents were observed in a minority of GFP(+) cells (14.8 %, n = 4/27), and the remaining 7.4 % (2/27) of GFP(+) cells did not respond to 5-HT. These observations indicated that the 5-HT-mediated pharmacological properties of the membrane currents of DRN GFP(+) cells were heterogeneous.

Fig. 3

Effects of 5-HT, 8-OH-DPAT, and DOI on membrane currents of GFP-positive and medial GFP-negative cells in the DRN. Representative current traces of GFP(+) (a1, b1, c1) and mGFP(−) (a2, b2, c2) cells in the DRN that responded to 5-HT (a), 8-OH-DPAT (b), and DOI (c). The lower pie charts display the percentage of responses (inward orange, outward green, and no effect white) to 5-HT (a), 8-OH-DPAT (b), and DOI (c) in each type of cell. Scatter plots display the distributions of current amplitudes induced by 5-HT (a3), 8-OH-DPAT (b3), and DOI (c3) in the GFP(+) and mGFP(−) cells. The current amplitude was sorted by response (inward orange, outward green). Boxes and whiskers indicate mean ± standard error of the mean and the range from minimum to maximum, respectively

Furthermore, we explored 5-HT-mediated responses in DRN GFP(+) and mGFP(−) cells. Because previous studies have demonstrated that the outward and inward currents elicited by 5-HT were mediated by the activation of 5-HT1A and 5-HT2A/2C receptors in DRN cells, respectively, we used selective agonists, such as 8-OH-DPAT and DOI for the 5-HT1A and 5-HT2A/2C receptor, respectively. Outward currents elicited by 8-OH-DPAT (5 μM) were observed in half of the GFP(+) cells (9/18) and 93 % of the mGFP(−) cells (14/15) (Fig. 3b1, b2). mGFP(−) cells had larger outward current amplitudes in response to 8-OH-DPAT than GFP(+) cells (GFP(+), 30.4 ± 4.0 pA vs. mGFP(−), 72.3 ± 8.3 pA, p < 0.001, t test; Fig. 3b3). In GFP(+) cells, the responses to 8-OH-DPAT varied [inward current, 16.7 % (n = 3/18); no response, 33.3 % (n = 6/18)]. These results suggested that DRN GFP(+) cells were heterogeneous for 5-HT receptor expression. We then examined whether the 5-HT–induced inward currents in GFP(+) cells involved 5HT2A/2C receptor activation. As shown in Fig. 3c1, the membrane currents were recorded during the sequential application of 5-HT and DOI. Half of the tested GFP(+) cells (n = 7/14) showed a DOI-induced inward current, while 42.9 % (n = 6/14) of the GFP(+) cells had no response to DOI (Fig. 3c1). However, the DOI-induced inward current was detected in only a small population of tested mGFP(−) cells (18.2 %, 2/11; Fig. 3c2), and their amplitude was small or negligible (Fig. 3c3). Altogether, these data highlighted the heterogeneity of DRN GFP(+) cells in the regulatory effects through the activation of 5-HT receptors.


Utility of GAD67+/GFP mice

Present study is the first that characterized differences in electrophysiological and pharmacological properties of GABAergic and non-GABAergic cells in the DRN by using GAD67+/GFP mice. To the best of our knowledge, there has been only 1 previous report about the electrophysiological properties of DRN GABAergic neurons [15]. Other studies that have used TPH immunoreactivity for cell typing have reported that the resting membrane potential, AP threshold, and input resistance did not statistically differ [6, 7]. This was probably because the tested non-5-HT neurons potentially contained heterogeneous cells and were not a uniform population. In this study, we demonstrated that GABAergic cells and 5-HT cells within the DRN were localized in distinct subregions (Fig. 1), which was similar to the findings of a previous report [3]. Furthermore, we showed that GFP-negative and TPH-immunonegative small cells were located in the lateral DRN, which was similar to the localization of GFP(+) cells. These cells were putatively glutamatergic because the neuronal cell types in the DRN, other than 5-HT cells, are mainly glutamatergic or GABAergic [2, 3, 16]. However, the properties of DRN glutamatergic cells remain to be elucidated.

Altogether, the identification of cell types with GAD67+/GFP mice enabled a clearer discrimination of the properties of DRN cells.

Intrinsic membrane properties of DRN GABAergic cells

The membrane properties of DRN GABAergic cells had distinctive features: more depolarized resting membrane potential, steeper AP threshold, and higher input resistance. These results suggested that GABAergic cells were easily excitable compared to 5-HT neurons. Moreover, the lower overshoot amplitude and fast AP kinetics may contribute to the high-frequency firing of up to ~25 Hz in the GABAergic cells. In fact, the input–output relationships induced by positive currents were linear until 100 pA of injection current, and they exhibited frequency adaptation over 100 pA (Fig. 2d).

Physiological and pharmacological implications of DRN GABAergic cells

In the course of pharmacological experiments shown in Fig. 3, we could not exclude synaptic activity-driven indirect actions of serotonergic agonists. However, in most cases, spontaneous postsynaptic currents obtained from recorded cells were not altered by each agonist. Therefore, it is thought that the serotonergic agonist-induced membrane currents reflect direct action of the postsynaptic membrane.

It has been established that feedback inhibition through somatodendritic 5-HT1A autoreceptors located on DRN 5-HT cells (Fig. 3a2, b2) is an important mechanism for controlling 5-HT neuronal activity [17, 18]. Like 5-HT cells, GABAergic cells play an important role in controlling 5-HT neuronal activity through 5-HT receptor-mediated modulatory actions [18, 19]. We found that 5-HT elicited excitatory responses in most GABAergic cells, while inhibitory actions were observed in 14.8 % of the GABAergic cells. However, these results cannot be explained simply by the activation of 5-HT1A or 5-HT2A/2C receptors in the subsequent experiments with 8-OH-DPAT or DOI. In the 8-OH-DPAT experiment, outward currents were observed in 50 % of the tested cells, which was a much higher cell population than that in the 5-HT challenge (14.8 %). However, it was comparable to immunohistochemical and in situ hybridization results that have reported that 40–50 and 10–15 %, respectively, of non5-HT neurons express the 5-HT1A receptor [15, 20]. Therefore, the discrepancy between the 5-HT and 8-OH-DPAT results can be explained by the effects of other 5-HT receptor subtypes, such as the 5-HT2A/2C receptor, which may overwhelm the response of 5-HT1A receptor activation. Previous studies have shown that the balance between the 5-HT1A and 5-HT2A/2C receptors is important in the neuronal regulation by 5-HT [8, 21]. Moreover, the inward currents elicited by 8-OH-DPAT are probably due to the activation of the 5-HT7 receptor as 8-OH-DPAT has a moderate affinity for 5-HT7 receptors [22, 23].

For the selective 5-HT2A/2C receptor-agonist experiment, DOI elicited inward currents in only 50 % of the tested GABAergic neurons (Fig. 3a3). Hence, only half of the 5-HT-induced inward currents were mediated by 5-HT2A/2C receptor activation in GABAergic cells. The remaining half might be accounted for by the activation of the 5-HT7 receptor [18]. That is, in addition to the 5-HT1A and 5-HT2A/2C receptors, 5-HT7 receptors might be implicated in the postsynaptic effects of DRN GABAergic neurons. Actually, the 5-HT7 receptor, which is expressed in some GABAergic neurons, contributes to GABA release to regulated 5-HT neurons in the DRN [24, 25].

In heterogeneous DRN neurons, competitive/synergistic actions of multiple 5-HT receptor subtypes induce distinct signaling properties and contribute to a diverse 5-HT neurotransmitter system. These complex regulations have been implicated in the etiology and treatment of many common psychiatric disorders. More extensive explorations of 5-HT receptor subtypes, including their properties, distributions, and interactions, are necessary for the development of novel therapeutic strategies that target 5-HT receptor subtypes.


  1. 1.

    Jacobs BL, Azmitia EC (1992) Structure and function of the brain serotonin system. Physiol Rev 72:165–229

  2. 2.

    Fu W, Le Maître E, Fabre V, Bernard JF, David Xu ZQ, Hökfelt T (2010) Chemical neuroanatomy of the dorsal raphe nucleus and adjacent structures of the mouse brain. J Comp Neurol 518:3464–3494

  3. 3.

    Brown RE, McKenna JT, Winston S, Basheer R, Yanagawa Y, Thakkar MM, McCarley RW (2008) Characterization of GABAergic neurons in rapid-eye-movement sleep controlling regions of the brainstem reticular formation in GAD67-green fluorescent protein knock-in mice. Eur J Neurosci 27:352–363

  4. 4.

    Liu R, Jolas T, Aghajanian G (2000) Serotonin 5-HT2 receptors activate local GABA inhibitory inputs to serotonergic neurons of the dorsal raphe nucleus. Brain Res 873:34–45

  5. 5.

    Li YQ, Li H, Kaneko T, Mizuno N (2001) Morphological features and electrophysiological properties of serotonergic and non-serotonergic projection neurons in the dorsal raphe nucleus. An intracellular recording and labeling study in rat brain slices. Brain Res 900:110–118

  6. 6.

    Beck SG, Pan YZ, Akanwa AC, Kirby LG (2004) Median and dorsal raphe neurons are not electrophysiologically identical. J Neurophysiol 91:994–1005

  7. 7.

    Kirby LG, Pernar L, Valentino RJ, Beck SG (2003) Distinguishing characteristics of serotonin and non-serotonin-containing cells in the dorsal raphe nucleus: electrophysiological and immunohistochemical studies. Neuroscience 116:669–683

  8. 8.

    Marinelli S, Schnell SA, Hack SP, Christie MJ, Wessendorf MW, Vaughan CW (2004) Serotonergic and nonserotonergic dorsal raphe neurons are pharmacologically and electrophysiologically heterogeneous. J Neurophysiol 92:3532–3537

  9. 9.

    Tamamaki N, Yanagawa Y, Tomioka R, Miyazaki J, Obata K, Kaneko T (2003) Green fluorescent protein expression and colocalization with calretinin, parvalbumin, and somatostatin in the GAD67-GFP knock-in mouse. J Comp Neurol 467:60–79

  10. 10.

    Hirono M, Saitow F, Kudo M, Suzuki H, Yanagawa Y, Yamada M, Nagao S, Konishi S, Obata K (2012) Cerebellar globular cells receive monoaminergic excitation and monosynaptic inhibition from Purkinje cells. PLoS ONE 7:e29663

  11. 11.

    Ono M, Yanagawa Y, Koyano K (2005) GABAergic neurons in inferior colliculus of the GAD67-GFP knock-in mouse: electrophysiological and morphological properties. Neurosci Res 51:475–492

  12. 12.

    Bang SJ, Commons KG (2012) Forebrain GABAergic projections from the dorsal raphe nucleus identified using GAD67-GFP knock-in mice. J Comp Neurol 520:4157–4167

  13. 13.

    Muto Y, Sakai A, Sakamoto A, Suzuki H (2012) Activation of NK1 receptors in the locus coeruleus induces analgesia through noradrenergic-mediated descending inhibition in a rat model of neuropathic pain. Br J Pharmacol 166:1047–1057

  14. 14.

    Shikanai H, Yoshida T, Konno K, Yamasaki M, Izumi T, Ohmura Y, Watanabe M, Yoshioka M (2012) Distinct neurochemical and functional properties of GAD67-containing 5-HT neurons in the rat dorsal raphe nucleus. J Neurosci 32:14415–14426

  15. 15.

    Allers KA, Sharp T (2003) Neurochemical and anatomical identification of fast- and slow-firing neurones in the rat dorsal raphe nucleus using juxtacellular labelling methods in vivo. Neuroscience 122:193–204

  16. 16.

    Commons KG (2009) Locally collateralizing glutamate neurons in the dorsal raphe nucleus responsive to substance P contain vesicular glutamate transporter 3 (VGLUT3). J Chem Neuroanat 38:273–281

  17. 17.

    Hajós M, Hajós-Korcsok E, Sharp T (1999) Role of the medial prefrontal cortex in 5-HT1A receptor-induced inhibition of 5-HT neuronal activity in the rat. Br J Pharmacol 126:1741–1750

  18. 18.

    Sharp T, Boothman L, Raley J, Quérée P (2007) Important messages in the ‘post’: recent discoveries in 5-HT neurone feedback control. Trends Pharmacol Sci 28:629–636

  19. 19.

    Boothman LJ, Allers KA, Rasmussen K, Sharp T (2003) Evidence that central 5-HT2A and 5-HT2B/C receptors regulate 5-HT cell firing in the dorsal raphe nucleus of the anaesthetised rat. Br J Pharmacol 139:998–1004

  20. 20.

    Day HE, Greenwood BN, Hammack SE, Watkins LR, Fleshner M, Maier SF, Campeau S (2004) Differential expression of 5HT-1A, α1b adrenergic, CRF-R1, and CRF-R2 receptor mRNA in serotonergic, gamma-aminobutyric acidergic, and catecholaminergic cells of the rat dorsal raphe nucleus. J Comp Neurol 474:364–378

  21. 21.

    Craven RM, Grahame-Smith DG, Newberry NR (2001) 5-HT1A and 5-HT2 receptors differentially regulate the excitability of 5-HT-containing neurones of the guinea pig dorsal raphe nucleus in vitro. Brain Res 899:159–168

  22. 22.

    Wood M, Chaubey M, Atkinson P, Thomas DR (2000) Antagonist activity of meta-chlorophenylpiperazine and partial agonist activity of 8-OH-DPAT at the 5-HT7 receptor. Eur J Pharmacol 396:1–8

  23. 23.

    Chapin EM, Andrade R (2001) A 5-HT7 receptor-mediated depolarization in the anterodorsal thalamus. I. Pharmacological characterization. J Pharmacol Exp Ther 297:395–402

  24. 24.

    Glass JD, Grossman GH, Farnbauch L, DiNardo L (2003) Midbrain raphe modulation of nonphotic circadian clock resetting and 5-HT release in the mammalian suprachiasmatic nucleus. J Neurosci 23:7451–7460

  25. 25.

    Roberts C, Thomas DR, Bate ST, Kew JN (2004) GABAergic modulation of 5-HT7 receptor-mediated effects on 5-HT efflux in the guinea-pig dorsal raphe nucleus. Neuropharmacology 46:935–941

  26. 26.

    Paxinos G, Franklin KBJ (2001) The mouse brain in stereotaxic coordinates, 2nd edn. Academic, San Diego

Download references


We thank Yasunori Mikahara for his technical assistance. This work was supported by CREST of Japan Science and Technology Agent (JST), a Grant-in-Aid for Scientific Research on Priority Areas from MEXT, a Grant-in-Aid for Scientific Research from JSPS and Takeda Science Foundation.

Author information

Correspondence to Fumihito Saitow.

Rights and permissions

Open Access This article is distributed under the terms of the Creative Commons Attribution License which permits any use, distribution, and reproduction in any medium, provided the original author(s) and the source are credited.

Reprints and Permissions

About this article

Cite this article

Gocho, Y., Sakai, A., Yanagawa, Y. et al. Electrophysiological and pharmacological properties of GABAergic cells in the dorsal raphe nucleus. J Physiol Sci 63, 147–154 (2013).

Download citation


  • Dorsal raphe
  • GABAergic
  • Serotonin
  • Electrophysiology
